Using Direct Entry
You can directly enter a destination fax number by using the 10-key pad.
Memo
Specify a destination in step 5 in "Sending a Fax".
-
Press
to select [Direct Input], and then press
(OK).
-

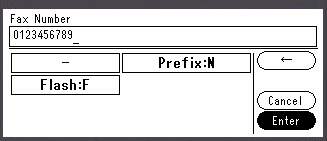

Enter a destination fax number by using the 10-key pad.
You can enter up to 40 digits.
Memo
You can enter a destination by using the 10-key pad on the screen that is displayed after pressing
(FAX). In such a case, the start screen is displayed after entering a destination, and you can set scanning for transmissions. -
Select [Enter], and then press
(OK).
About the Dial Function
When entering a destination fax number, you can use the following functions.
"-", "Prefix", and "Flash"
Select a sign on the fax number entry screen, and then press (OK) to enter.
-
- (Hyphen)
Inserts a hyphen to the entered fax number.
-
Prefix
Inserts a prefix number that is registered in advance. "N" is inserted when entering.
-
Flash
Orders your PBX (Private Branch Exchange) to connect you with PSTN (Public Switched Telephone Network). "F" is inserted when entering.
"Pause", "#"
Enter with the < # > key on the 10-key pad. Pressing the < # > key switches between "P" and "#".
-
Pause
Pauses 2 seconds when dialing. You can enter pauses as many as you want. "P" is inserted when entering.
-
# (Pound)
Sends "#" to the telephone line if [MF(Tone)/DP(Pulse)] is set to [Tone]. "#" is inserted when entering.
"Tone", "*"
Enter with the < * > key on the 10-key pad. Pressing the < * > key switches between "T" and "*".
-
Tone
Switches to tone dialing if [MF(Tone)/DP(Pulse)] is set to [Pulse]. "T" is inserted when entering.
-
* (Asterisk)
Sends "*" to the telephone line if [MF(Tone)/DP(Pulse)] is set to [Tone]. "*" is inserted when entering.
